AVK LIMIT SWITCH BOX TYPE ES2.PE
For direct mounting on handlever, gearboxes and pneumatic actuators.
The AVK limit switch box designed for direct mounting on handlever, gearboxes and pneumatic actuators for series 820 butterfly valves features a UV resistant housing made from PA6 + PC and mounting brackets according to NAMUR (VDI/VDE3845). For Series 820/ butterfly valves.
| Variant 170/X-001 |
|---|
Features
- Housing made from PA6 + PC (UV resistant, self extinguishing rate V0).
- The mounting brackets, made from PA6 with 30%GF%, are according to NAMUR (VDI/VDE3845), for holes distance 80x30mm and 130x30mm and standard NAMUR shaft heights of 20 and 30mm.
- Limit switches 1x ON, 1x OFF.
- Visiual position indicater mounted on top.
- 2 independent adjustable cams.
- Cable gland M20 x 1,5.
- Compatible with handlevers, gearboxes, pneumatic and electric actuators of Series 820 butterfly valves.

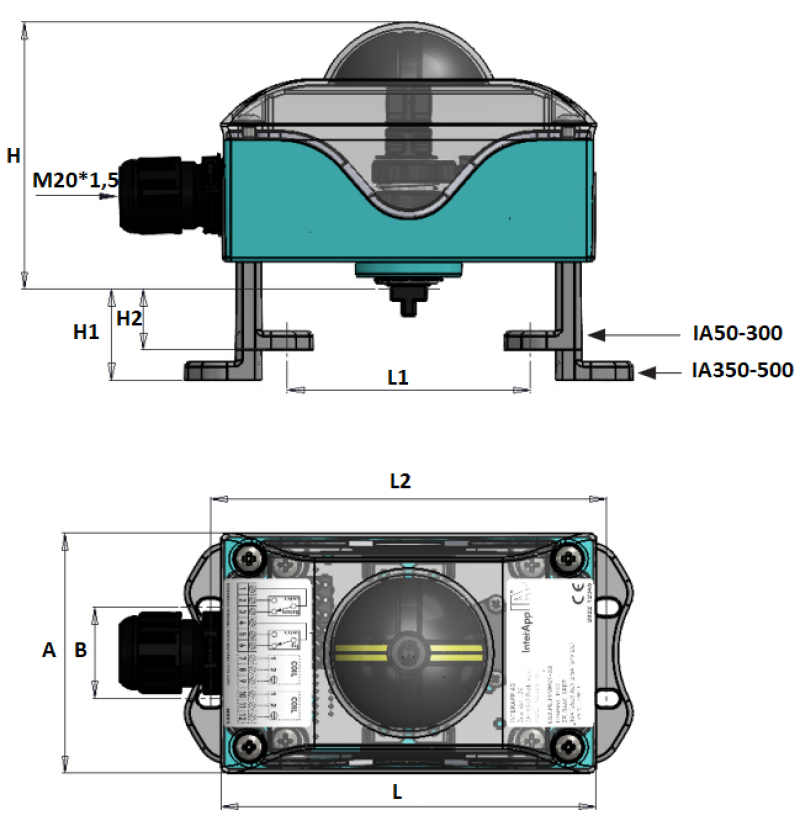

Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | A mm |
B mm |
H mm |
H1 mm |
H2 mm |
L mm |
L1 mm |
L2 mm |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|---|---|

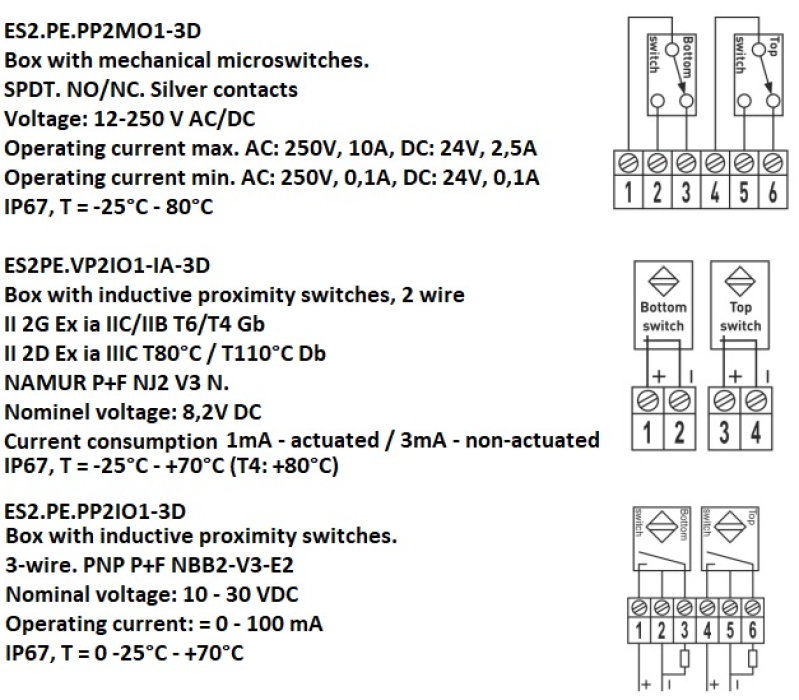

| ES2.PE.PP2I01-3D | 79 | 30 | 88 | 30 | 20 | 123 | 80 | 130 | 0.3 |
| ES2.PE.PP2M01-3D | 79 | 30 | 88 | 30 | 20 | 123 | 80 | 130 | 0.3 |
Enquiry
Scroll for more info
Components
| 1. | Housing | PA 6 |
| 2. | Bracket | PA GF |
| 3. | Shaft | PA 6 |
| 4. | Limit switch/positioner | |
| 5. | ||
| 6. | Cable gland |
